製品詳細
起源の場所: 中国
ブランド名: DIALEAD
証明: CE, EAC
モデル番号: DLCNC-600-5 について
支払及び船積みの言葉
最小注文数量: 1セット
価格: $40000
パッケージの詳細: プラスチックフィルム
受渡し時間: 預金を受け取ってから20日
支払条件: 、L/C、T/T、Western Union、MoneyGram
供給の能力: 毎月10セット
名前: |
5 軸 CNC ブリッジ 切断 機械 |
システム: |
カットカメラ |
メインモーター出力: |
22Kw |
切断刀の直径: |
350-600mm |
作業エリア: |
3400*2000*185MM |
ポジショニング: |
カメラによる自動 |
切断頭を回す: |
0〜360° |
切断頭 切断頭: |
0~90° |
名前: |
5 軸 CNC ブリッジ 切断 機械 |
システム: |
カットカメラ |
メインモーター出力: |
22Kw |
切断刀の直径: |
350-600mm |
作業エリア: |
3400*2000*185MM |
ポジショニング: |
カメラによる自動 |
切断頭を回す: |
0〜360° |
切断頭 切断頭: |
0~90° |
600mm Type 5 Axis CNC Bridge Cutting Machine for Stone Fabrication
Technical Data
|
Model |
# |
DLCNC-600-5 |
|
Blade Diameter |
mm |
350-600 |
|
Working Table Size |
mm |
3400*2000 |
|
Max Cutting Thickness |
mm |
185 |
|
Table Turnover degree |
° |
0-85 |
|
Rotation of Machine Head |
° |
0-360 |
|
Chamfer of Machine Head |
° |
0-90 |
|
Idle Speed |
M/min |
25 |
|
Positioning Accuracy |
mm |
<0.1 |
|
Z Axis Stroke |
mm |
650 |
|
Loading capacity for Sunction Cup |
kg |
500 |
|
Main Motor Power |
kw |
22(permanent magnet) |
|
Total Power |
kw |
30 |
|
Overall Size |
mm |
5800*3600*3800 |
|
Weight |
kg |
6000 |
Note: All technical data can be customized to meet your specific needs.

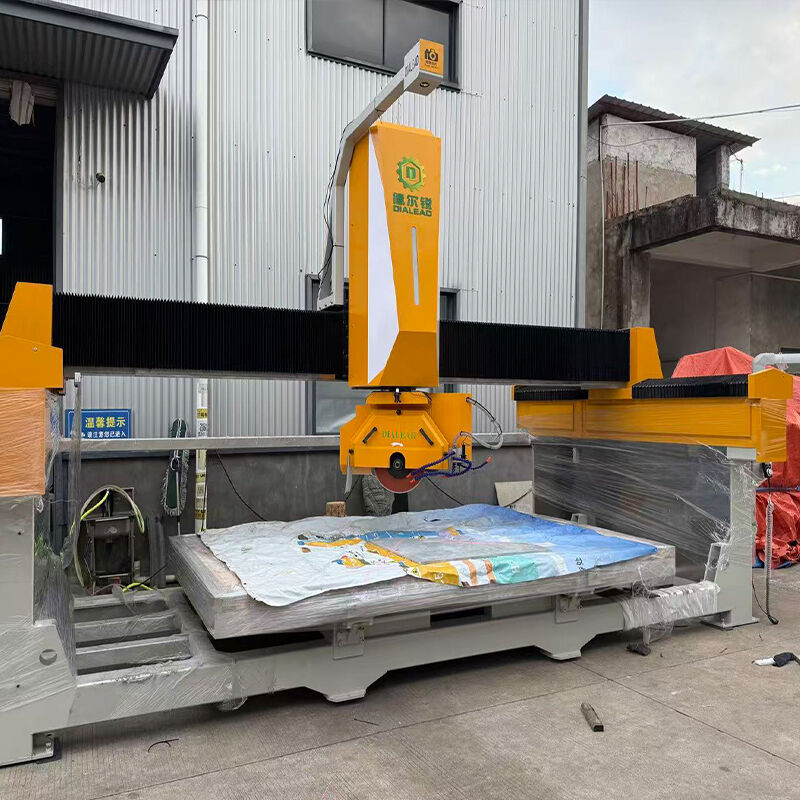

Machine Photos
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include 5 axis bridge cutting machine, four-axis bridge cutting machine,stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc. Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Workshop
Partners
Qualification
Exhibitions
